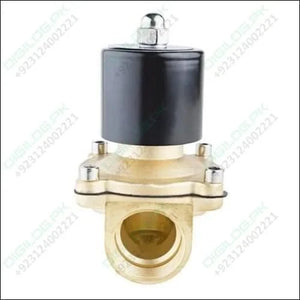

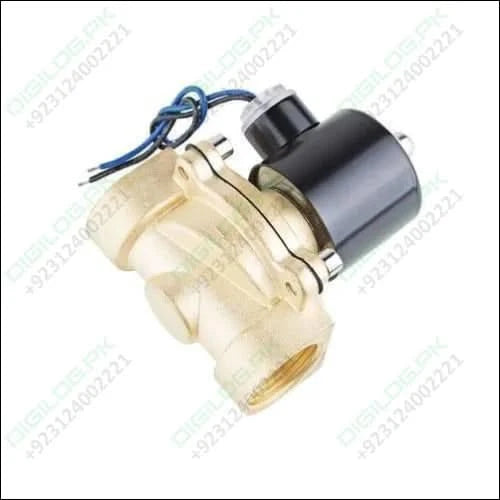

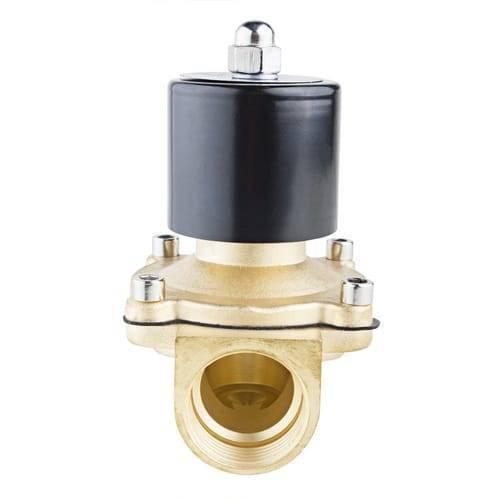

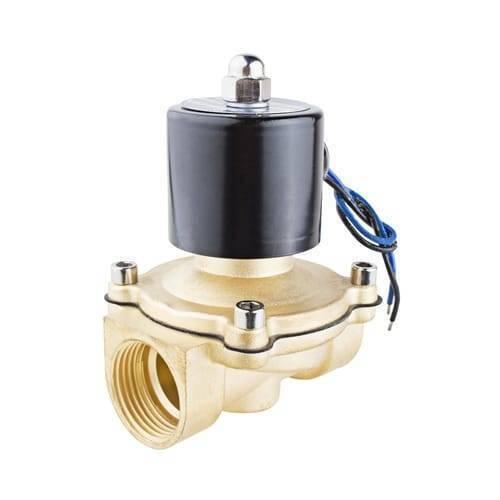

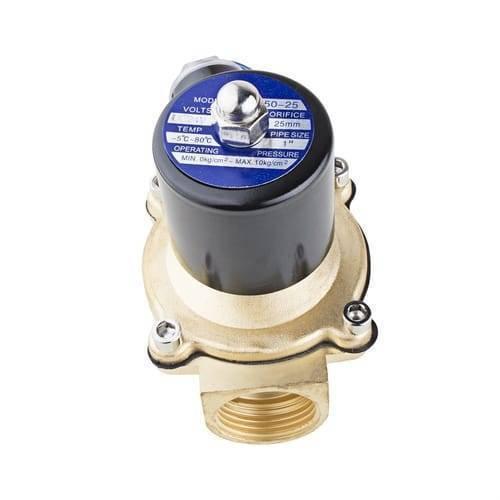

1 Inch 24v Dc Electric Solenoid Valve Coil For Water Air Gas Fuels

A Water solenoid valve is an electromechanically operated valve. However  Air Gas Solenoid Valve has durable brass and quality Brass solenoid construction. In addition High-quality replacement part for use with pipelines in water, air, and diesel applications. Moreover Magnetic Solenoid Valve Suit for hot or cold water, gas, air, oils, low viscosity fluids, hydrocarbons, gasoline, kerosene, or engine fuel

Features Of 1 inch Normally Closed 2 Way N/C Brass Solenoid Valve:

• Two-way, semi-direct lift valve with a normally closed operating position
• High-quality replacement part for use with pipelines in water, air, and also diesel applications
• Horizontal installation
• In addition Used to control automatically the liquid and gas in the pipeline.
• Good material, crush resistance, crack leak-proof, safe nontoxic, and also have a long life.

Specifications Of 1 inch DC 24V Brass Electric Solenoid Valve Water Air Fuels:

1. Acting Motion   : Direct action
2. Medium              : Air, water, diesel
3. Operating Type  : Directly driven
4. State                    : Normally closed
5. Supply Voltage   : 24V DC
6. Pipe Size              : 1″
7. Operating Pressure: 0kg/cm2 – 10kg/cm2
8. Fluid Temperature: 23 to 176℉
9. CV                         :  24
10. Operating Viscosity: Under 20CST
11. Installation          : Fluid direction should be as the arrow shows
12. Valve Body          : Brass
13. Oil Seal Material  : NBR

Package Includes:

• 1 x 1 Inch 24V DC Solenoid Valve Coil
