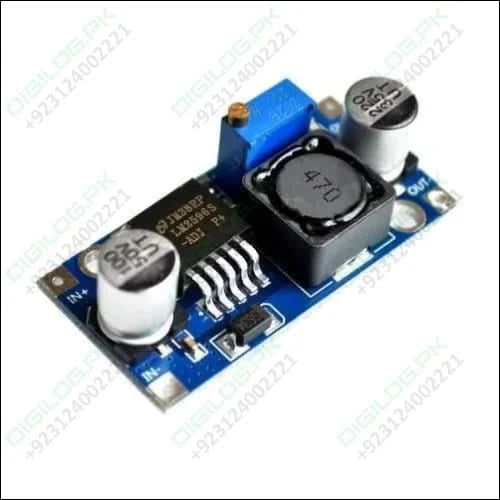

HW-411A LM2596 DC To Dc Buck Converter Step Down Module Power Supply

HW-411A LM2596 DC To Dc Buck Converter Step Down Module Power Supply

Regular price Rs.130
Regular price Sale price Rs.130
Sale Sold out
Shipping calculated at checkout.

SKU:B538,IMP500,Th253 krt134,S

NOTIFY ME WHEN IN STOCK

LM2596 DC-DC Buck Converter Step Down Module Power Supply is a step-down(buck) switching regulator. LM2596 Buck is capable of driving a 3-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version. The LM2596 Stepdown module is operating at a switching frequency of  150kHz, thus allowing smaller sized filter components than what would be required with lower frequency switching regulators

Features Of DC-DC LM2596 DC-DC Adjustable Buck Converter Step Down Module Power Supply:

  • Non-isolated step-down (BUCK) switching regulator.
  • Short circuit protection: Current limiting, self-recovery
  • Potentiometer adjustment direction
  • Non-synchronous rectification

Specifications of LM2596 3A Adjustable Voltage Regulator Buck Module:

  1. Model name: DC-DC LM2596S buck module
  2. Input voltage:3.2V~46V (recommended for use in 40V)
  3. Output voltage:1.25V~35V
  4. Output current:3A (maximum)
  5. Conversion efficiency:92% (highest)
  6. Output ripple:<30mV
  7. Switching frequency:65KHz
  8. Working temperature:-45 ~ +85
  9. Dimension:21mm * 43mm * 14mm (length * width * height)

Package Include:

  • 1x DC To Dc Buck Converter Step Down Module Power Supply LM2596

Best Online shopping website for DC To Dc Buck Converter Step Down Module Power Supply LM2596 in cheap price in Lahore Islamabad Karachi Faislabad Quetta Sukkur Multan Rawalpindi Peshawar and all over Pakistan.

View full details

Description

LM2596 DC-DC Buck Converter Step Down Module Power Supply is a step-down(buck) switching regulator. LM2596 Buck is capable of driving a 3-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version. The LM2596 Stepdown module is operating at a switching frequency of  150kHz, thus allowing smaller sized filter components than what would be required with lower frequency switching regulators

Features Of DC-DC LM2596 DC-DC Adjustable Buck Converter Step Down Module Power Supply:

  • Non-isolated step-down (BUCK) switching regulator.
  • Short circuit protection: Current limiting, self-recovery
  • Potentiometer adjustment direction
  • Non-synchronous rectification

Specifications of LM2596 3A Adjustable Voltage Regulator Buck Module:

  1. Model name: DC-DC LM2596S buck module
  2. Input voltage:3.2V~46V (recommended for use in 40V)
  3. Output voltage:1.25V~35V
  4. Output current:3A (maximum)
  5. Conversion efficiency:92% (highest)
  6. Output ripple:<30mV
  7. Switching frequency:65KHz
  8. Working temperature:-45 ~ +85
  9. Dimension:21mm * 43mm * 14mm (length * width * height)

Package Include:

  • 1x DC To Dc Buck Converter Step Down Module Power Supply LM2596

Best Online shopping website for DC To Dc Buck Converter Step Down Module Power Supply LM2596 in cheap price in Lahore Islamabad Karachi Faislabad Quetta Sukkur Multan Rawalpindi Peshawar and all over Pakistan.
