1K RM065 Variable Resistor In Pakistan

SKU: b97
Regular price
Rs 10
Sale price
Rs 10
Regular price
Rs 0
Sold out
Unit price
Quantity must be 1 or more

The 1K Ohm RM065 Variable Resistor! This high-quality potentiometer offers smooth and accurate adjustment for your electronic projects. Ideal for volume control, sensor circuits, and also calibration. Although the RM065 ensures precise resistance tuning. Buy Now! and enhance your circuit performance.

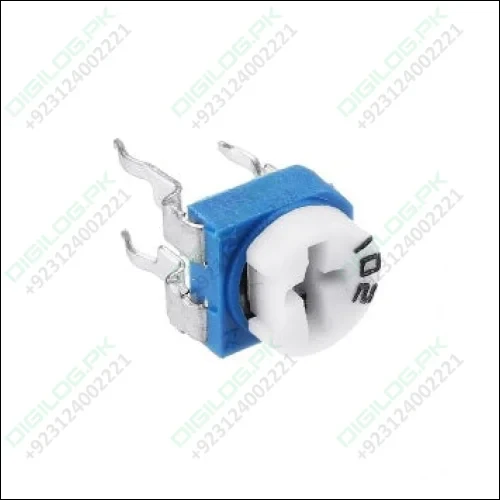

Rm065 Variable Resistor is a compact variable resistor and pcb mountable with 3 terminal pins. However the voltage between the terminal varies as the preset is rotate.

Hence the Variable resistors are used for variating voltage as per the need in a circuit. In addition the outer two pins are connected to Vcc and 0V, and cetner pin outputs a variable volatge between 0v and Vcc as the rotary cermet is rotated.

Specifications of 1K RM065 Variable Resistor:

  1. Track Resistance: 1k
  2. No. of Turns: 1
  3. Resistance Tolerance: ± 10%
  4. Temperature Coefficient: ± 100ppm/°C
  5. Potentiometer Mounting: Through Hole
  6. Adjustment Type: Top
  7. Contact Resistance Variation +: 1%
  8. Full Power Rating Temperature: 85°C
  9. Lead Diameter: 0.5mm
  10. Operating Temperature Range: -55°C to +125°C
  11. Resistance: 10k
  12. Resistor Element Material: Variable Rotary Cerment.

Elevate Your Electronics Expertise in Pakistan:

  • 1kΩ Resistance: Provides a versatile range for controlling voltage and current in your projects.
  • Compact Cermet Design: Fits seamlessly into breadboards and also PCB projects commonly used in Pakistan.
  • Single Turn Adjustment: Although offers user-friendly control for precise resistance settings.
  • Durable Construction: Ensures long-lasting performance and reliable operation.
  • Wide Applications: Hence Ideal for voltage dividers, LED brightness control, signal attenuation, and more.

Buy this product at Pakistan best online shopping store digilog.pk at cheap price. We deliver in Gujranwala ,Karachi, Lahore, Islamabad , Rawalpindi , Multan, Quetta , Faisalabad and all over the Pakistan.
