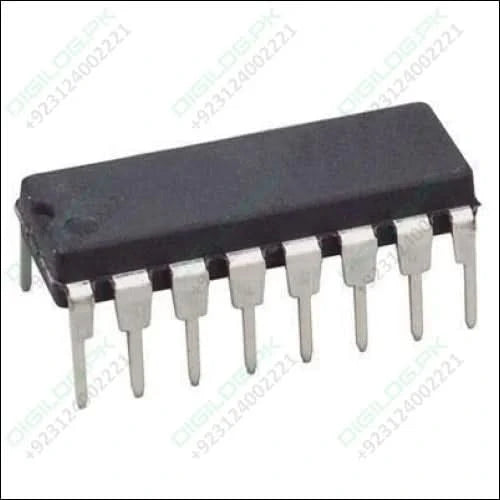

The IC 7420 is a standard TTL logic integrated circuit containing two independent 4-input NAND gates. These gates are fundamental building blocks in digital logic circuits, performing the logical NAND operation on four input signals to produce a single output.
Key features include:
- Two independent 4-input NAND gates
- Standard pin configuration
- Standard TTL switching voltages
- Operating temperature up to 70°C
