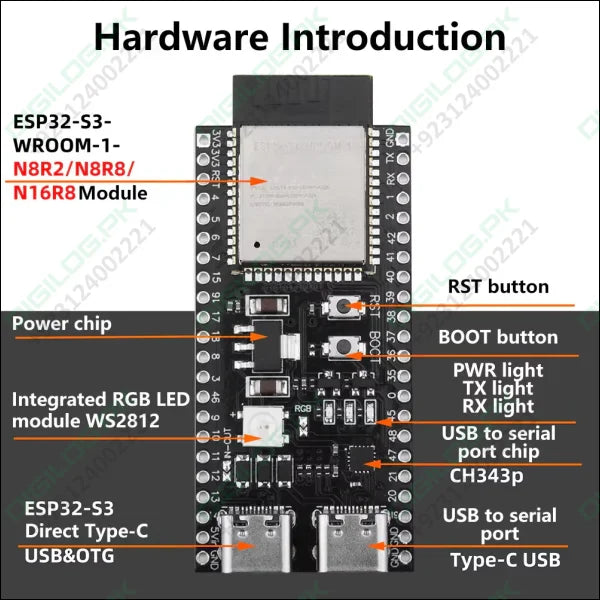

ESP32-S3 DevKitC-1 N16R8 – Premium Development Board for Advanced IoT Projects
The ESP32-S3 DevKitC-1 N16R8 is a powerful, feature-rich development board designed for professional IoT applications, wireless connectivity projects, and embedded systems development. Built on Espressif's advanced ESP32-S3 dual-core processor, this board delivers exceptional performance with 16MB Flash memory and 8MB PSRAM, making it ideal for complex applications requiring substantial storage and processing power.
Key Features & Benefits
- High-Performance Dual-Core Processor: Xtensa LX7 CPU running up to 240 MHz for demanding computational tasks
- Massive Memory: 16MB Flash + 8MB PSRAM for large applications, OTA updates, and data logging
- Advanced Wireless Connectivity: Integrated Wi-Fi 802.11 b/g/n and Bluetooth 5.0 LE with long-range support
- Rich Peripheral Set: 45 programmable GPIOs, SPI, I2C, I2S, UART, ADC, DAC, PWM, and more
- Built-in Antenna: PCB antenna for reliable wireless performance without external components
- USB-C Interface: Modern USB-C connector for programming, debugging, and power supply
Complete Technical Specifications
Microcontroller:
- Chip: ESP32-S3-WROOM-1-N16R8
- CPU: Dual-core Xtensa 32-bit LX7 microprocessor, up to 240 MHz
- Flash Memory: 16MB (128 Mbit) Quad SPI Flash
- PSRAM: 8MB (64 Mbit) Octal SPI PSRAM
- ROM: 384 KB for boot and core functions
- SRAM: 512 KB internal SRAM
Wireless Connectivity:
- Wi-Fi: IEEE 802.11 b/g/n (2.4 GHz), up to 150 Mbps
- Bluetooth: Bluetooth 5.0 LE with long-range support
- Antenna: Integrated PCB antenna (no external antenna connector)
- Wi-Fi Modes: Station, SoftAP, SoftAP+Station, Promiscuous
- Security: WPA/WPA2/WPA3, Enterprise encryption
GPIO & Peripherals:
- GPIO Pins: 45 programmable GPIOs
- ADC: 2× 12-bit SAR ADCs, up to 20 channels
- DAC: 2× 8-bit DAC channels
- Touch Sensors: 14 capacitive touch sensing GPIOs
- SPI: 4× SPI interfaces (Quad SPI support)
- I2C: 2× I2C interfaces
- I2S: 2× I2S interfaces for audio applications
- UART: 3× UART interfaces
- PWM: 8× LED PWM controllers
- USB: USB 2.0 OTG full-speed interface
- JTAG: Built-in JTAG for debugging
Power Specifications:
- Operating Voltage: 3.3V
- Input Voltage (USB): 5V via USB-C
- Input Voltage (VIN): 5V via pin header
- Power Consumption: Ultra-low power modes available (deep sleep: ~7 μA)
- Power Supply: USB-C or external 5V power supply
Physical Specifications:
- Dimensions: Approximately 55.5mm × 28mm
- Weight: 50 grams
- Pin Headers: 2× 19-pin headers (2.54mm pitch)
- Operating Temperature: -40°C to +85°C
Ideal Applications
- IoT sensor networks and smart home devices
- Wireless audio streaming and voice recognition
- Industrial automation and control systems
- Wearable electronics and health monitoring
- Edge AI and machine learning applications
- Mesh networking and gateway devices
- Battery-powered wireless sensors
- Bluetooth Low Energy beacons
Development Environment
- Supports ESP-IDF (Espressif IoT Development Framework)
- Arduino IDE compatible
- MicroPython and CircuitPython support
- PlatformIO integration
- Extensive libraries and community support
What's Included
- 1× ESP32-S3 DevKitC-1 N16R8 Development Board
- Pre-soldered pin headers for breadboard compatibility
Why Choose ESP32-S3 DevKitC-1 N16R8?
This development board combines powerful processing capabilities with extensive memory resources, making it perfect for developers who need to build sophisticated IoT applications. The 16MB Flash and 8MB PSRAM provide ample space for complex firmware, web servers, data logging, and OTA updates. With built-in Wi-Fi and Bluetooth 5.0 LE, you can create connected devices that communicate seamlessly with smartphones, cloud services, and other IoT devices.
The ESP32-S3's advanced features include hardware acceleration for cryptography, support for secure boot, and flash encryption, ensuring your applications meet modern security requirements. Whether you're prototyping a new product or developing production-ready embedded systems, the ESP32-S3 DevKitC-1 N16R8 delivers the performance and flexibility you need.
Order your ESP32-S3 DevKitC-1 N16R8 Development Board today from Digilog.pk and accelerate your IoT development projects!
