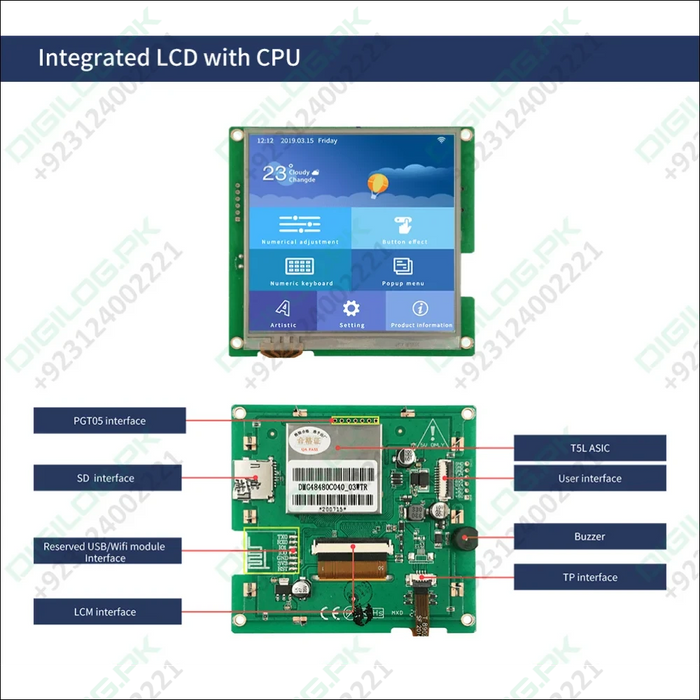

The 4.0 Inch HMI LCD Display is a versatile and high-performance component that provides a clear and vibrant visual interface for your projects. With its customizable options, easy-to-use development tools, and reliable performance, it's ideal for a wide range of applications.
Key Features:
- High-Resolution Display: Offers a resolution of 480x480 pixels for sharp and detailed visuals.
- Customizable Interface: Create tailored interfaces using DWIN DGUS V7.6 GUI development tools.
- Easy-to-Use Development: No coding skills required for interface creation.
- Versatile Applications: Suitable for industrial control, automation, and other applications.
- Durable Construction: Built to last with high-quality materials.
Specifications:
- Size: 4.0 Inch
- Resolution: 480x480 Pixels
- Colors: 16.7M Colors
- LCD Type: IPS TFT LCD
- Touch: Resistive or Capacitive
- Interface: FPC50_0.5mm (LCM), FPC4_1.0mm (RTP)
- Download: SD Card or On-line Serial Port
- Viewing Angle: 85°/85°/85°/85° (L/R/U/D)
- Backlight: LED (Brightness options)
- Touch Parameters: See above table
Order Now:
Upgrade your projects with our 4.0 Inch HMI LCD Display. Experience the clarity, versatility, and ease of use it offers.
